Universal Joint Cross

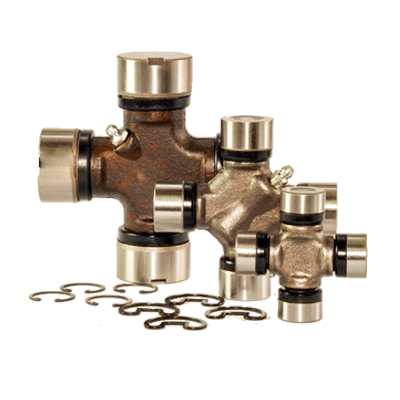

U J CROSS ASSEMBLY
| Minimum Order Quantity | 1 CASE |
| Usage/Application | CARDAN SHAFT |
| Hardness | 35-bhn |
| Size | 22.MM CUP OD TO 95.MM CUP SIZE |
| Material | 20.mNCr |
The teeth of hub and sleeve are continuously in contact
with each other and have been designed with the
necessary backlash to accommodate angular-, parallel-
and axial misalignment within their misalignment
capacity. The angular and parallel misalignment capacity
is determined by the gear tooth design and is for the
standard ESCO gear max. 1.5° degrees (2 x 0.75°) in
total. The axial misalignment capacity is limited by the
gear teeth length in the sleeve and can be varied
(optionally).
- High torque capacity & important angular misalignment allowing the coupling to operate under combined load, speed and misalignment conditions
- An easier coupling selection
- High bore capacity
- Light weight
- The highest manufacturing quality & long coupling life guaranteed
- A Multicrown gear shape
- Perfect homokinetic torque transmission
- Reduced backlash
- Perfect gear top centering
- Zinc coated body fitted flange connection bolts avoiding fretting corrosion in the flange bores
- An excellent protection of component
